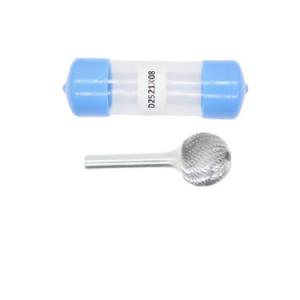

8mm Shank D-Ball Shape 25mm Cut Dia Carbide Burrs Double Cut Carbide Rotary Burr
Engineered for precision and durability, this D-Ball shape carbide burr features a 25mm cutting diameter and an 8mm shank, making it ideal for heavy-duty metalworking applications. Crafted from premium tungsten carbide, this burr delivers exceptional hardness and wear resistance, ensuring long service life even under high-speed grinding.
The double cut tooth pattern provides smoother operation, reduces loading, and enhances control during cutting, shaping, deburring, and surface cleaning tasks. Perfectly suited for use on steel, stainless steel, cast iron, non-ferrous metals, and hard plastics.
Ball Shape Carbide Burr On 8mm Shank
Brand: BABOS
Material: Tungsten Carbide
Cut Diameter:25mm
Length of Flute: 21mm
Shank Diameter: 8mm
OAL: 66mm
Cut Type: Standard Double Cut
Other Available Sizes Related to Type D Carbide Burrs Both in Metric and Inch Standard:
| Metric Standard | | Shank Dia. (mm) | Cutter Dia. (mm) | Length of Cut (mm) | Overall Length (mm) | Tool No. | The Combination of Head and Shank | | d2 | d1 | l2 | l1 | | 3 | 2 | 1.8 | 38 | D0202 | Solid | | 2.5 | 2.3 | 38 | D2525 | Solid | | 3 | 2.5 | 38 | D0325 | Solid | | 4 | 3 | 41 | D0403 | Brazed | | 5 | 4 | 42 | D0504 | Brazed | | 6 | 5 | 43 | D0605 | Brazed | | 6 | 6 | 5 | 50 | D0605 | Brazed | | 8 | 7 | 52 | D0807 | Brazed | | 10 | 9 | 54 | D1009 | Brazed | | 12 | 10 | 55 | D1210 | Brazed | | 16 | 14 | 59 | D1614 | Brazed | | 19 | 18 | 63 | D1918 | Brazed | | 25 | 21 | 66 | D2521 | Brazed | | 8 | 12 | 10 | 56 | D1210 | Brazed | | 16 | 14 | 59 | D1614 | Brazed | | 19 | 18 | 63 | D1918 | Brazed | | 25 | 21 | 66 | D2520 | Brazed | | Inch Standard | | 1/8'' | 1/8" | 1/8" | 1-1/2" | SD-42 | Solid | | 3/16" | 5/32" | 1-1/2" | SD-53 | Brazed | | 1/4" | 7/32" | 1-3/4" | SD-51 | Brazed | | 1/4'' | 3/16" | 1/8" | 2'' | SD-14 | Solid | | 1/4" | 7/32" | 2'' | SD-1 | Solid | | 5/16" | 1/4" | 2" | SD-2 | Brazed | | 7/16" | 3/8" | 2-1/7" | SD-4 | Brazed | | 1/2" | 7/16" | 2-1/5" | SD-5 | Brazed | | 5/8" | 9/16" | 2-1/3" | SD-6 | Brazed | | 3/4" | 11/16" | 2-4/9" | SD-7 | Brazed | | 1" | 15/16" | 2-7/8" | SD-9 | Brazed | | | | |
Customization:
- Please send us the drawings or other important information if you need non-standard carbide burrs.
- Please contact us if you need more information about type D burrs or other shapes of burrs.
- OEM is avaliable.
Cut Selection Guide:
